TRD S 25
The electronic thermostat can be used as a heating or cooling thermostat or optionally as a PID two-point
controller. It measures the process variables via a thermocouple. When used as a PID two-point controller,
the controller structures P, I, PD, PI, and PID are possible.
The device type TRD S 25 is available with 1 relay and 1 digital output (DC 0/14 V).
Elstein TRD S 25 standard design
Type | two point controller with PID performance |
Numbers of switching units | max. 2 TSE per controller |
Temperature sensor | Thermocouple L, J, K |
Control range | up to 1,000° C |
Setpoint setting | in 1° C steps |
Outputs | (relay output, logic output 0/14 V) |
Supply voltage | AC 230 V, 48 to 63 Hz |
Measuring circle monitoring | Measuring range undershoot/overshoot, break (sensor/cable), reverse polarity |
Permitted ambient temperature | -10 to +55 °C |
Permitted air humidity | < 90% relative humidity without immersion |
Setpoint value display | 18-segment LCD display, 4 digits, white |
Actual value display | 18-segment LCD display, 7 digits, green |
Degree of protection | Front IP 65, rear IP 20 |
Connexions | Spring-loaded terminals (push-in technology) |
Installation position | Any installation position |
Dimensions | 76 x 36 x 62 mm |
| Control panel cutout | 70 x 29.5 mm |

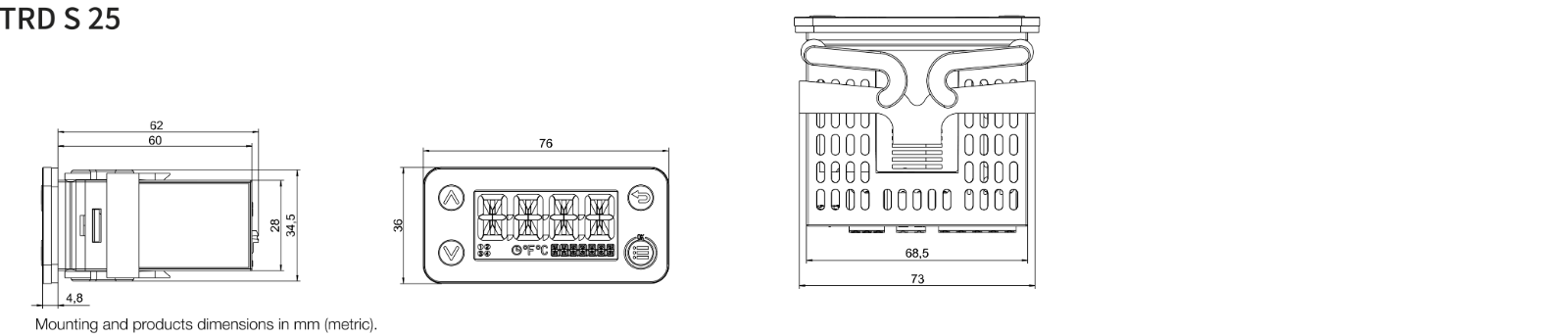

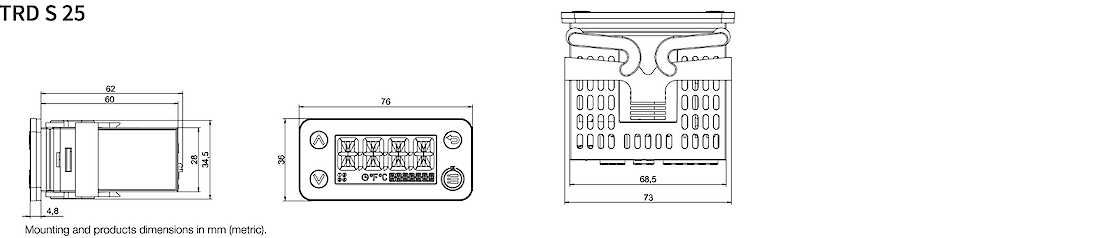

Subject to technical modifications of the products. Products can differ from illustration. Mounting and products dimensions in mm (metric).
